Acsr Conductor Compressor Machine

Usus Acsr Conductor Articulus Compressor Machina efficacissima via est ad commissuras Conductoris vel Terrae filum iuncturas comprimendas. In hoc casu, apparatus motorised Super High-Pressurae Hydraulicae Stationis Pump, quae cum compressore hydraulico caput conformat, optimum exitum potest praebere. Gravis est notare ferrum roboris summus adhibitum esse in dejectione Acsr Conductoris Compressoris Machina coniungens augere effectum et diuturnitatem.

Mitte Inquisitionem

depictio producti

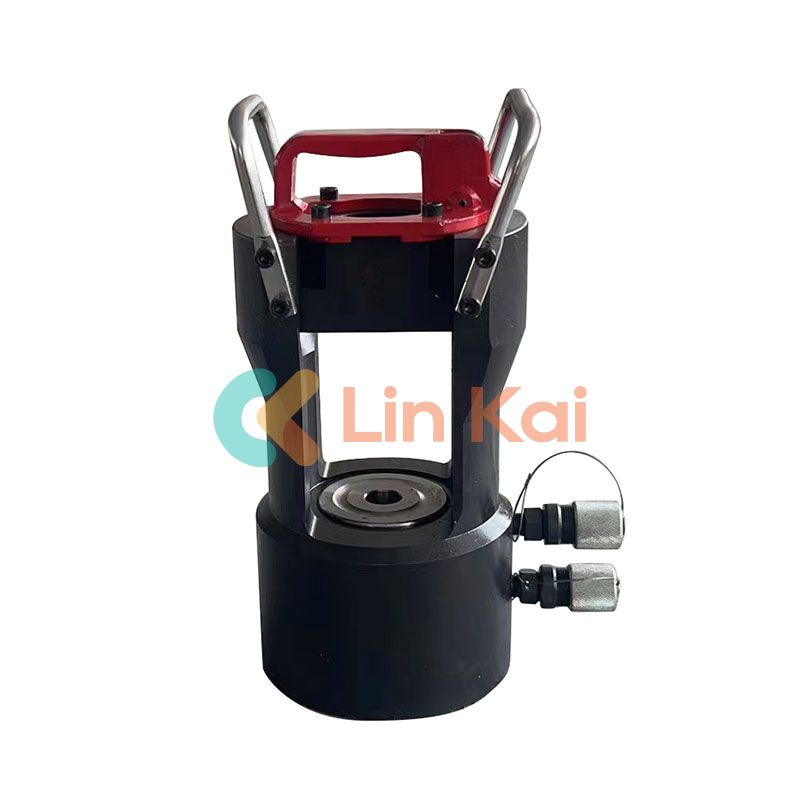

Acsr Conductor Compressor Machina Compressor, instructa cum motorised Gasoline Engine Hydraulicum Pump Statione, perfecta electio est ad lineam transmissionis supra caput iungendam ACSR conductor iuncturam. Hoc est ut compages efficaciter comprimantur in gradu pressionis inquisitae. Subtilitas in iunctura possibilis fit per sentinam hydraulicam motorised pressionis hydraulicae stabilis fluxus.

Support and Services:

Acsr Conductor noster Compressor Machina iungens ordinatur ad certas et efficaces crimpings pro variis applicationibus providere. technica subsidia et officia praestamus ut instrumentum tuum rite fungatur ac subveniat omnibus quaestionibus quae oriuntur. Manipulus peritorum noster auxilium sollicitudinis, operas reparandi et partes subrogandi praebere potest ut Machina Compressor Acsr Conductor iungens in suprema conditione custodiat. Praeterea facultates disciplinae et educationis offerimus ut tibi plurimum ex instrumento tuo adiuvemur et ad usum proprium ac tutum conservemus. Contactus nos magis informationes de nostris subsidiis et officiis technicis.

Acsr Conductor Joining Compressor Machina data sheet

Item No.	Exemplar	Maximilianus. Cogo Force (KN)	Maximilianus. Hydraulica Pressura (MPa)	Maximilianus. ACSR Size (mm²)	Plaga (mm)	Pondus (kg)
16101	QY-25	250	70	240	22	6
16102	QY-45	450	70	240	25	12
16103	QY-65	650	94	500	25	25
16104	QY-125	1250	94	720	25	40
16105	QY-200	2000	94	1440	25	85
16106A	QY-300	3000	94	2500	35	126

Applicatio: Pro compressis conductor articulis seu articulis filum terrestre, sentinam hydraulicam motorised adiuvatur in conjunctione cum compressore hydraulico capite. Alta vis ferri in dejectione adhibetur.

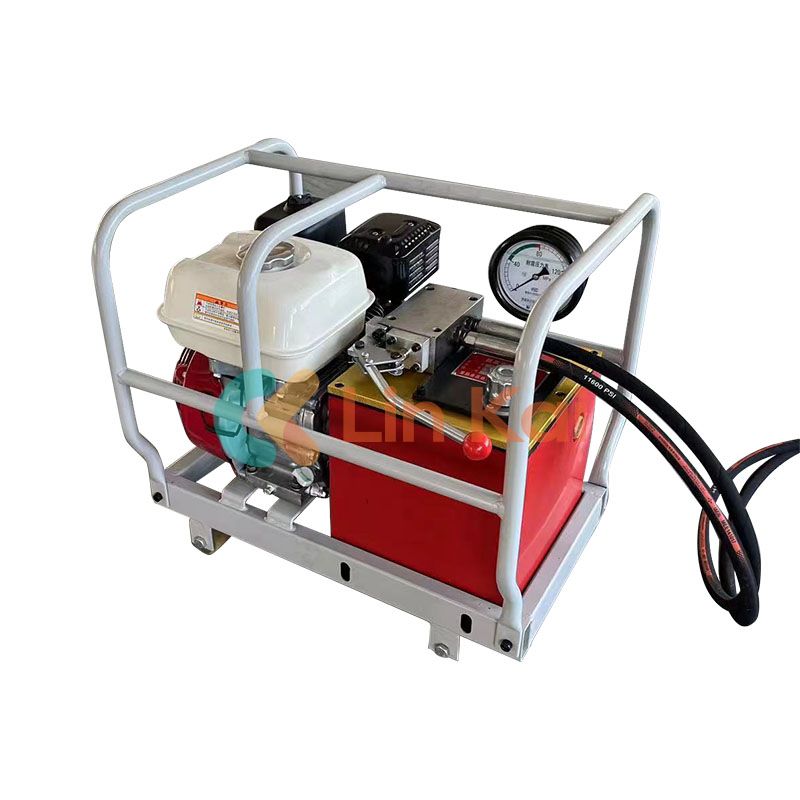

Princeps Pressura HYDRAULICUS Statio Pump (Model: YBG-94WQ)

Item No.	Descriptio	Hydraulica Pressura (MPa)	Oleum flow (L/min)	Potentia (HP)	Pondus (kg)
16146	Gasoline motor pulsus hydrau stationem sentinam insidentes manu plaustri	80	11.02-2.05	5.0	55

Animadvertendum est Acsr Conductor Compressor machinae stationes sentinae coniungens simpliciter electricitatem aliis machinis vel compressoribus hydraulicis suppeditare. Honda GX160 machina gasoline est.

Communis caligarum hydraulica tria metra longum est. Hose extenso non requiritur.

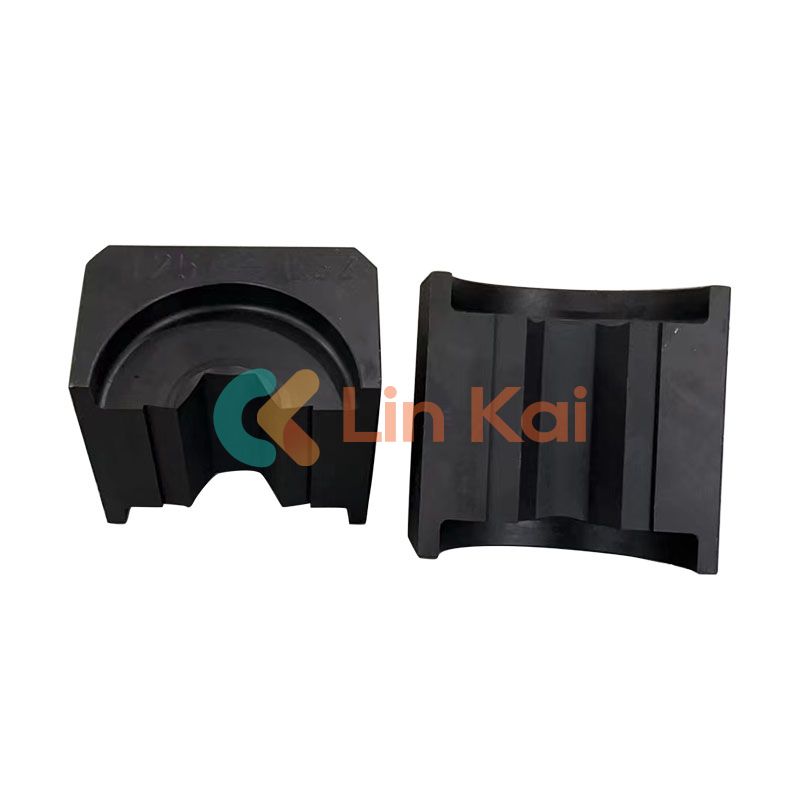

Compressione Hexagon Die sets

Item No.	Compressor Compressor	Specification of Hexagonal Die Set (Diameter exterioris compressionis terminalis, L pro compressionis aluminii terminalis, G pro ferro terminalis)
16121	QY-25	Aeris vel Aluminium Terminators 16-240mm2
16122	QY-35	L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm
16123	QY-65	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm
16124	QY-125	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm
16125	QY-200	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mm. G -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm
16126	QY-300	L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80, 95, 100 mm G -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm
